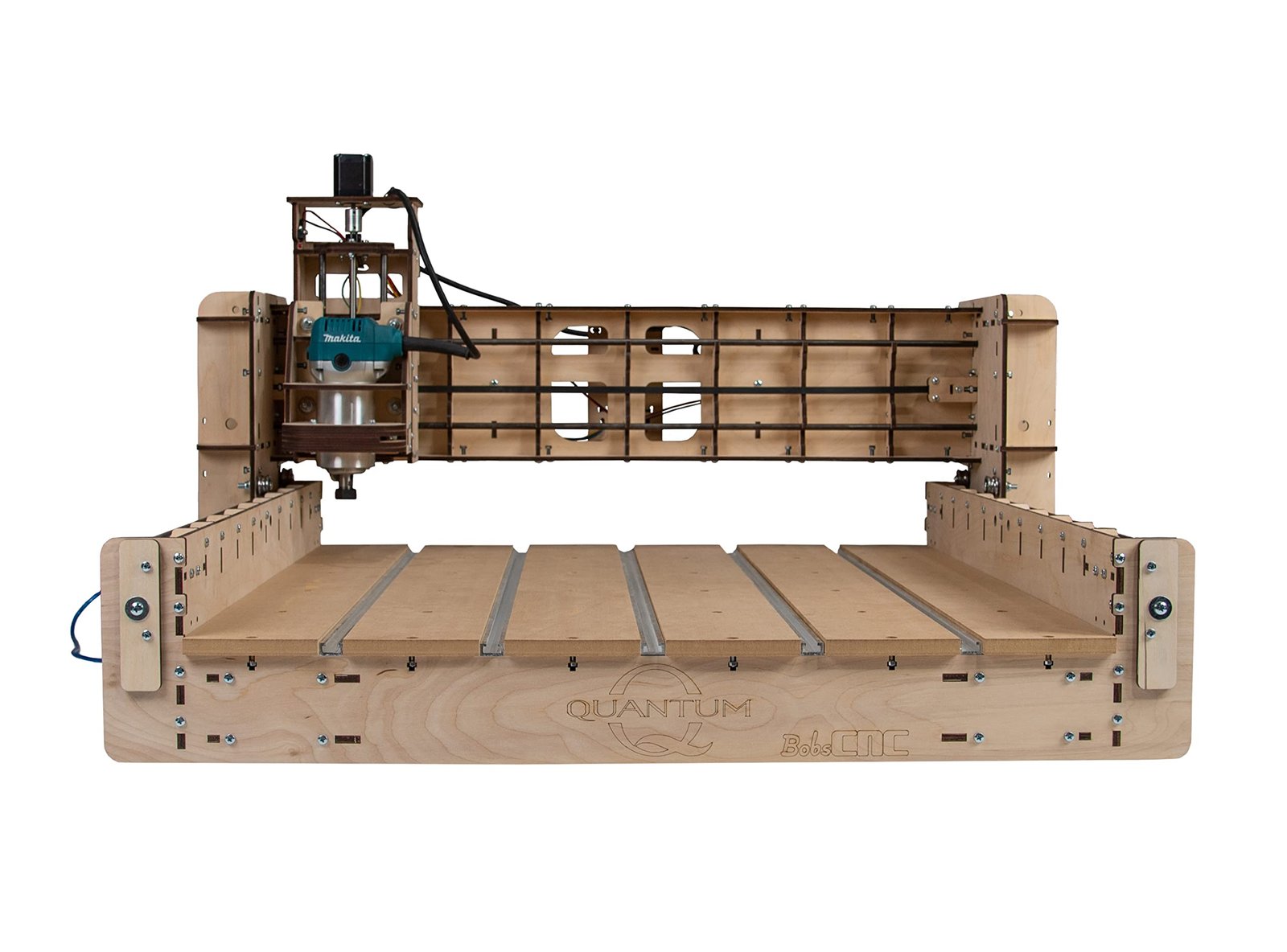

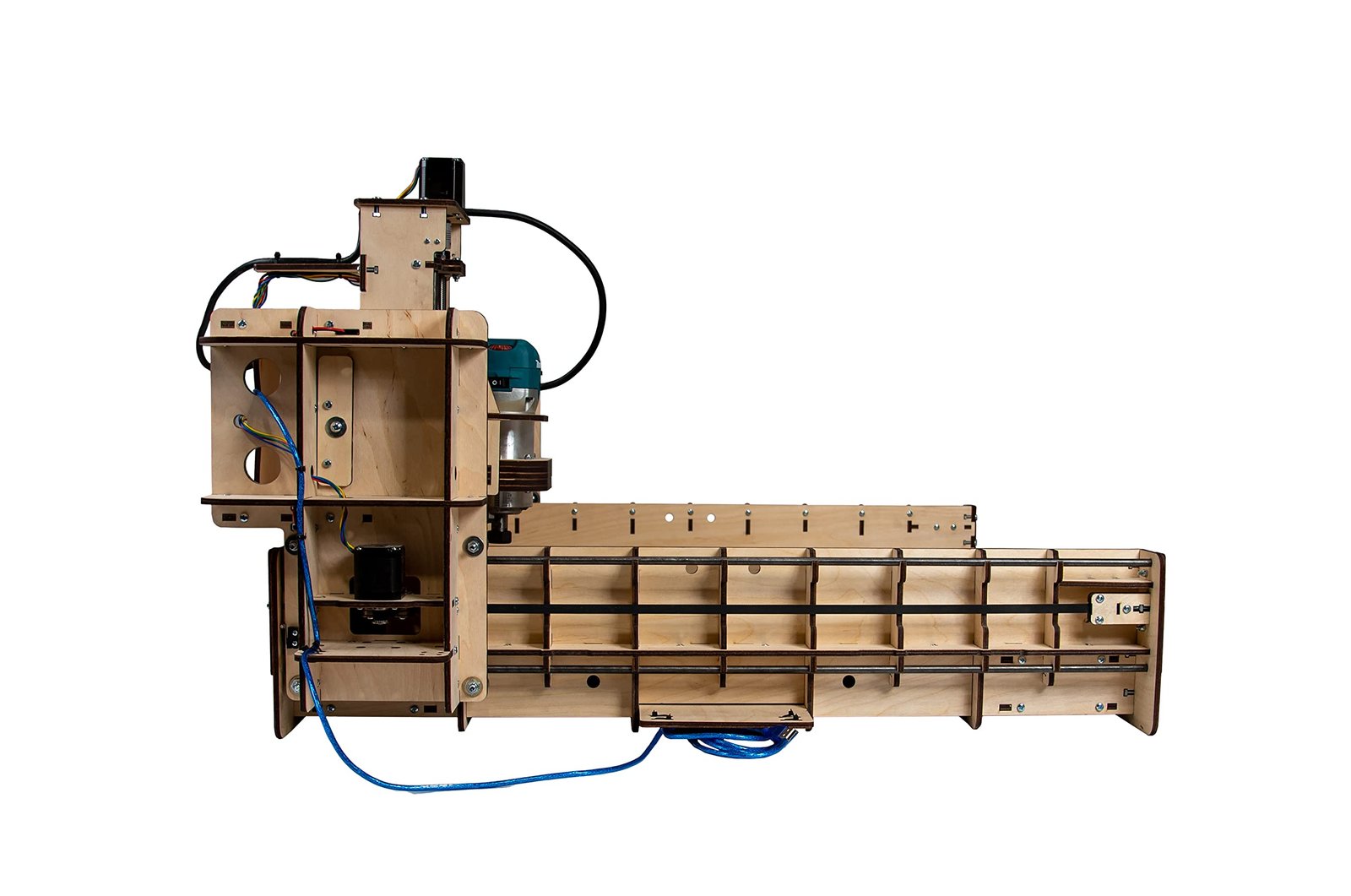

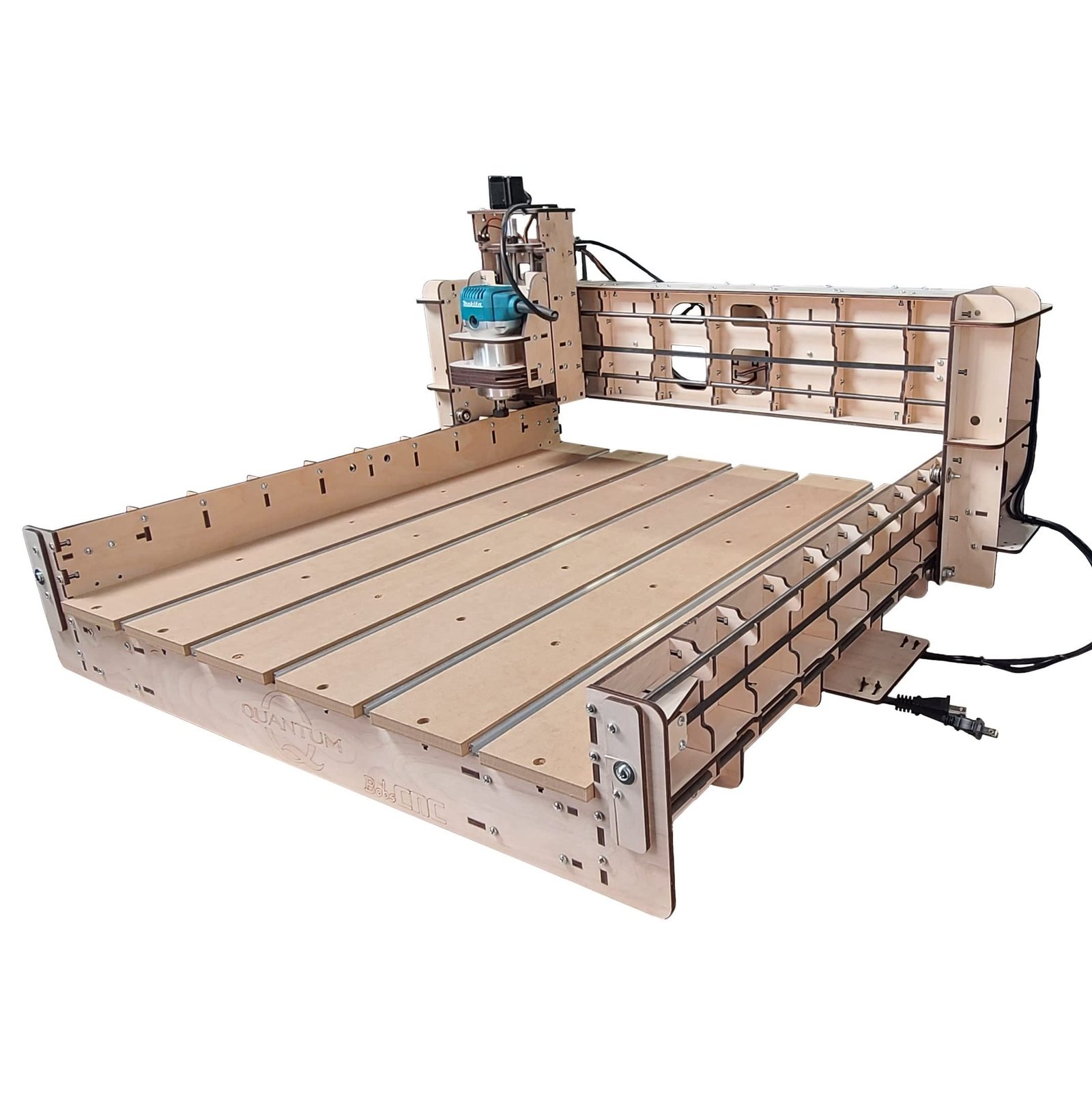

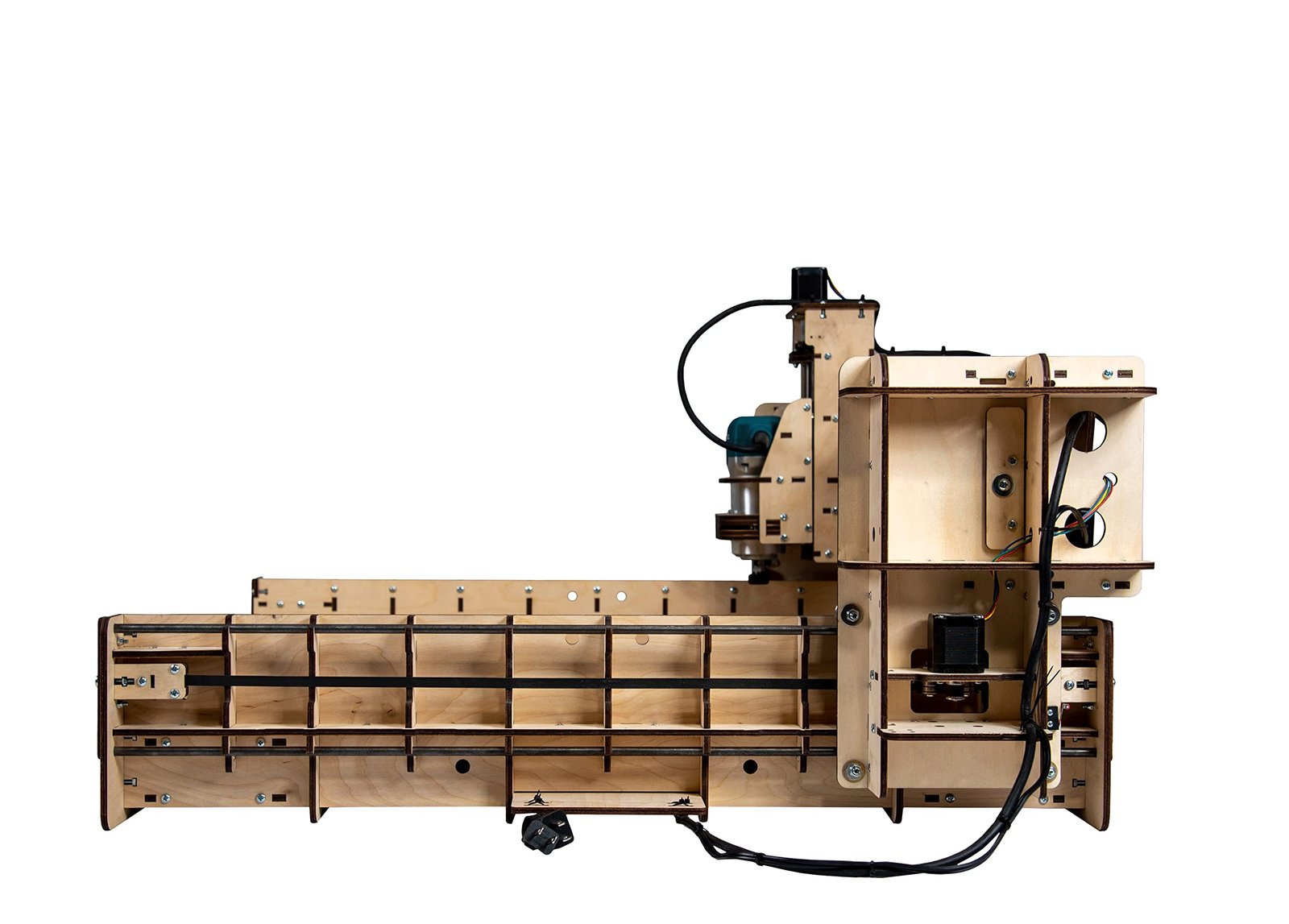

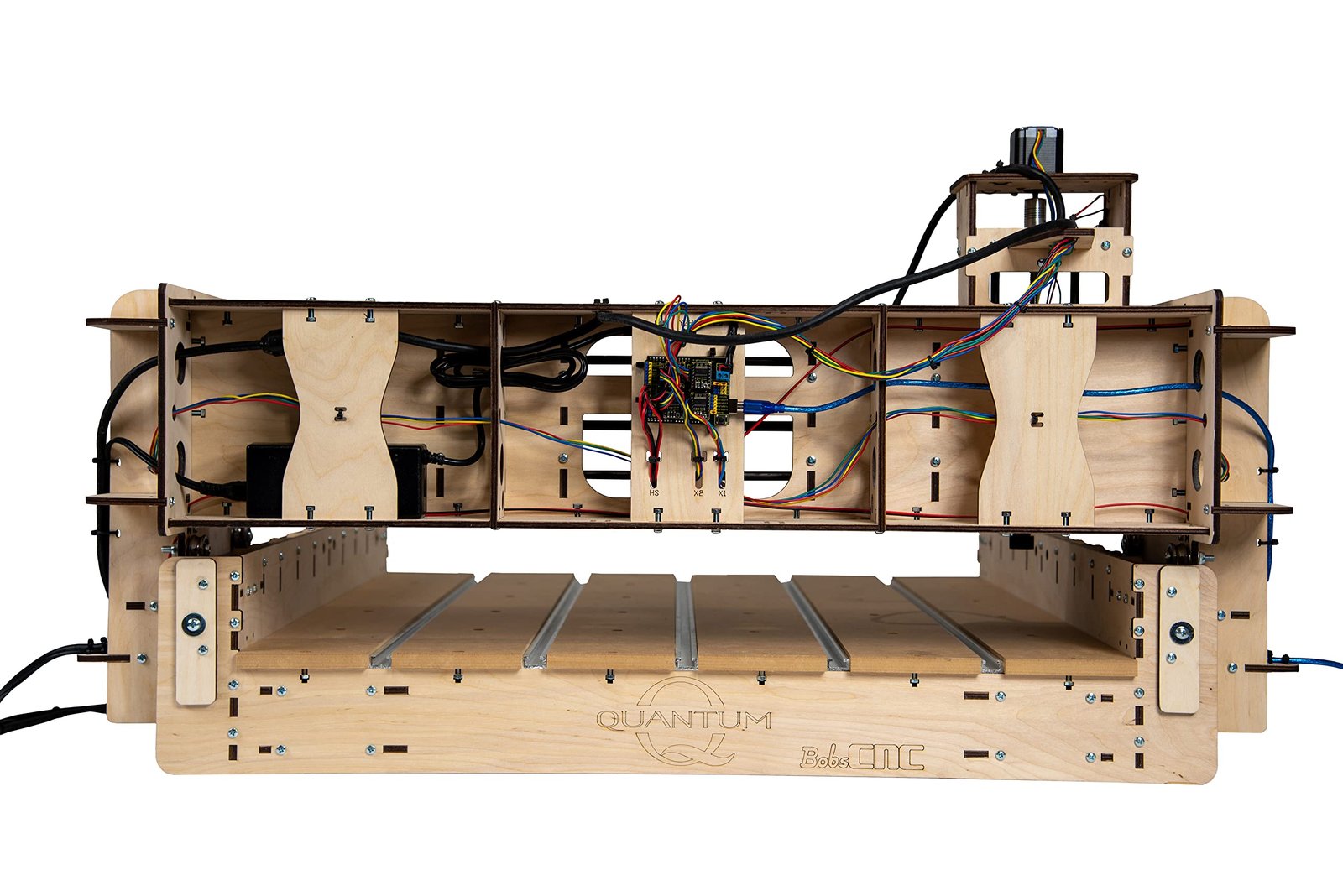

BobsCNC Quantum CNC Router Kit with the Makita Router Included (24″ x 24″ cutting area and 3.8″ Z travel)
Features:
- A rigid laser cut 5-Ply Baltic Birch frame with SG20U supported rail system.
- GT2 9mm belt drive on X and Y-axis and Tr8 Acme Rod mounted with an ACME Nut on the Z-axis.
- NEMA 17 Stepper Motors and Home switches on all axes with a Self-Squaring Gantry.
- 1/2” MDF, with aluminum T-Slot Spoilboard and includes the Makita RT0701C Variable Speed Router.
- Designed to use GRBL1.1 firmware on the Arduino Uno with repeatability of 0.002” to 0.004”.
- Assembly Required
Details: This CNC will connect to your computer’s USB Cable and run gcode create with Your software. You will need a computer, router bits and software to complete the kit. There are several free and pad software options.
